Call widgets

3.0.0

Check out the Embeddable Page Schema reference on how to structure content in Embeddable using JSON

Call Widgets are a powerful capability of RingCentral Embeddable, allowing developers to inject dynamic, contextual content directly into the core RingCentral calling experience.

When a user is on a call, call widgets appear in the right-hand panel, enabling quick access to relevant information or actions—without leaving the call page.

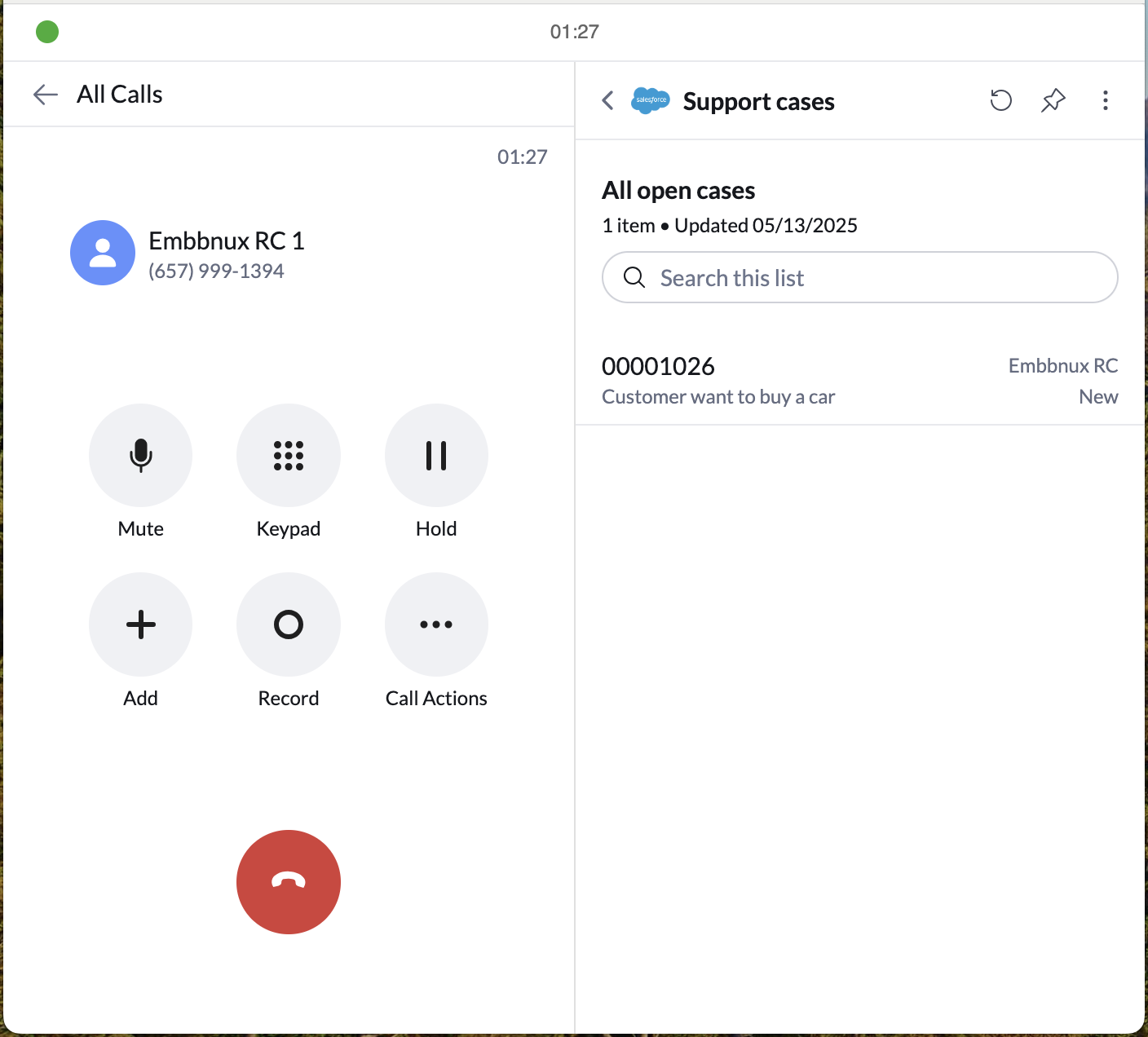

call-widget-case-demo

Getting started

Enable side widget feature

Before registering a widget, you must first enable the side widget feature:

<script>
  (function() {
    var rcs = document.createElement("script");
    rcs.src = "https://apps.ringcentral.com/integration/ringcentral-embeddable/latest/adapter.js?enableSideWidget=1";
    var rcs0 = document.getElementsByTagName("script")[0];
    rcs0.parentNode.insertBefore(rcs, rcs0);
  })();
</script>

The enableSideWidget=1 parameter is required to activate call widget functionality

Register a call widget

Once enabled, register your custom call widget:

document.querySelector("#rc-widget-adapter-frame").contentWindow.postMessage({
    type: 'rc-adapter-register-widget-app',
    app: {
      id: 'support-cases',
      name: 'Support cases',
      iconUri: 'https://example.com/icon.png',
      pagePath: '/sidebarApps/support-cases',
      inputChangedPath: '/sidebarApps/support-cases/inputChanged',
      buttonEventPath: '/sidebarApps/support-cases/button-click',
    },
  }, '*')
  1. Unique identifier for your widget
  2. Display name shown in the widget menu
  3. Icon URL (128x128px recommended)
  4. Main content request path
  5. Input change event path
  6. Button click event path

Multiple widgets

You can register multiple call widgets by calling the registration API multiple times with different configurations.

After successful registration, your call widget will appear during active calls:

call-widget-apps

Building widget content

Understanding the request flow

When a user opens your call widget, the Embeddable framework sends a message to your app requesting page data in JSON format. The widget page is rendered using the JSON schema page library, allowing for dynamic and customizable UI layouts.

JSON Schema reference

Learn how to define custom widget pages with JSON schema in the JSON schema page document.

Basic page response

Add an event listener to handle page data requests:

function responseMessage(request, response) {
  document.querySelector("#rc-widget-adapter-frame").contentWindow.postMessage({
    type: 'rc-post-message-response',
    responseId: request.requestId,
    response,
  }, '*');
}

function getCasesPageJSON(cases) {
  return {
    page: {
      type: 'json-schema',
      schema: {
        type: 'object',
        required: [],
        properties: {
          "title": {
            "type": "string",
            "description": "All open cases",
          },
          "description": {
            "type": "string",
            "description": "1 item, Updated at 06/13/2025",
          },
          "caseSearch": {
            "type": "string",
            "description": "Search cases",
          },
          "caseList": {
            "type": "string",
            "oneOf": cases.map((item) => ({
              const: item.link,
              title: item.CaseNumber,
              description: item.Subject,
              authorName: item.Contact ? item.Contact.Name : null,
              meta: item.Status,
            })),
          },
          "accountId": {
            "type": "string",
            "description": "Account ID",
          },
        },
      },
      uiSchema: {
        title: {
          "ui:field": "typography",
          "ui:variant": "body2",
        },
        description: {
          "ui:field": "typography",
          "ui:variant": "caption1",
          "ui:style": { marginTop: '-20px' },
        },
        caseSearch: {
          "ui:field": "search",
          "ui:placeholder": 'Search this list',
          "ui:label": false,
          "ui:style": { marginTop: '-10px' },
        },
        caseList: {
          "ui:field": "list",
          "ui:showSelected": false,
          "ui:label": false,
        },
        accountId: {
          "ui:widget": "hidden",
        },
      },
      formData: {
        caseSearch: '',
        accountId: 'hidden_account_id',
      },
    },
    actions: [{
      id: 'home',
      label: 'Home',
    }, {
      id: 'unauthorize',
      label: 'Unauthorize CRM',
      color: 'danger.b04',
    }],
  };
}

window.addEventListener('message', function (e) {
  var data = e.data;
  if (data && data.type === 'rc-post-message-request') {
    if (data.path === '/sidebarApps/support-cases') {
      const contact = data.body.contact; // get contact { phoneNumber } from call
      // TODO: get cases from your CRM with contact info
      const cases = [{
        link: 'https://case_link',
        CaseNumber: '666666',
        Subject: 'Customer want to buy a car',
        Contact: {
          name: 'Customer Name',
        },
        Status: 'New',
      }];
      responseMessage(data, {
        data: getCasesPageJSON(cases),
      });
    }
  }
});
  1. Dynamic list generation from your data
  2. UI Schema controls the visual presentation
  3. Form data sets initial values
  4. Actions create menu buttons
  5. Contact information from the active call

call-widget-case-demo-page

Handling user interactions

Search functionality

Implement search with debouncing to optimize API calls:

// We use debounce to avoid sending too many requests to your CRM
let supportCasesSearchDebounce = null;

function debounceSupportCasesSearch(request) {
  if (!supportCasesSearchDebounce) {
    supportCasesSearchDebounce = {};
  } else {
    const timeout = supportCasesSearchDebounce.timeout;
    clearTimeout(timeout);
    const preRequest = supportCasesSearchDebounce.request;
    if (preRequest) {
      // respond 'ok' to avoid re-render the page
      responseMessage(preRequest, {
        data: 'ok',
      });
    }
  }
  supportCasesSearchDebounce.request = request;
  supportCasesSearchDebounce.timeout = setTimeout(async () => {
    supportCasesSearchDebounce = null;
    const contact = request.body.contact;
    const search = request.body.formData.caseSearch;
    const accountId = request.body.formData.accountId;
    // TODO: get cases from your CRM
    const cases = [{
      link: 'https://case_link',
      CaseNumber: '666666',
      Subject: 'Customer want to buy a car',
      Contact: {
        name: 'Customer Name',
      },
      Status: 'New',
    }];
    responseMessage(request, {
      data: getCasesPageJSON(cases),
    });
  }, 800);
}

window.addEventListener('message', function (e) {
  var data = e.data;
  if (data && data.type === 'rc-post-message-request') {
    if (data.path === '/sidebarApps/support-cases') {
      // Handle main page request
    }
    if (data.path === '/sidebarApps/support-cases/inputChanged') {
      if (data.body.changedKeys[0] === 'caseSearch') {
        debounceSupportCasesSearch(data);
      }
    }
  }
});
  1. 800ms debounce delay to prevent excessive API calls

Item selection handling

Handle user interactions with list items:

window.addEventListener('message', function (e) {
  var data = e.data;
  if (data && data.type === 'rc-post-message-request') {
    // ...
    if (data.path === '/sidebarApps/support-cases/inputChanged') {
      // ...
      if (data.body.changedKeys[0] === 'caseList') {
        const caseLink = data.body.formData.caseList;
        // Open case detail page in new tab
        window.open(caseLink, '_blank');
        responseMessage(data, {
          data: 'ok',
        });
      }
    }
  }
});

Authentication flow

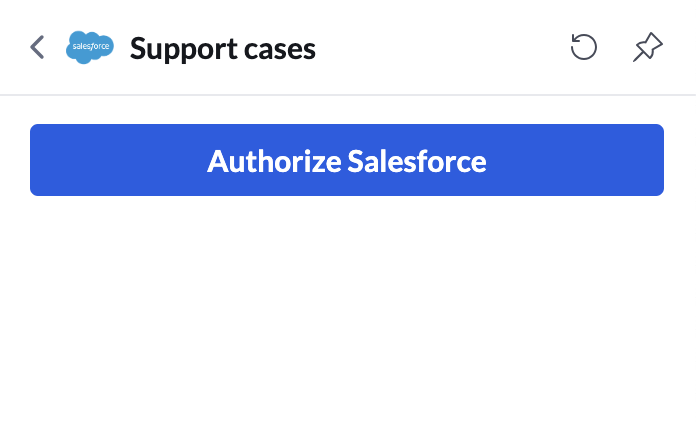

Authorization page

For widgets requiring authentication, implement an authorization flow:

authorization-flow

let crmAuthorized = false; // Set to true when user authorizes your CRM

function getAuthorizationPageJSON() {
  return {
    page: {
      type: 'json-schema',
      schema: {
        type: 'object',
        required: [],
        properties: {
          "crmAuthButton": {
            "type": "string",
            "title": "Authorize CRM",
          },
        },
      },
      uiSchema: {
        "crmAuthButton": {
          "ui:field": "button",
          "ui:variant": "contained", // "text", "outlined", "contained", "plain"
          "ui:fullWidth": true
        },
      },
      formData: {},
    },
  };
}

function getRefreshAuthorizationJson() {
  return {
    page: {
      type: 'json-schema',
      schema: {
        type: 'object',
        required: [],
        properties: {
          "someMessage": {
            "type": "string",
            "description": "Refresh the app after authorization",
          },
        },
      },
      uiSchema: {
        someMessage: {
          "ui:field": "admonition",
          "ui:severity": "info",
        },
      },
      formData: {},
    },
  };
}

Authorization handling

window.addEventListener('message', function (e) {
  var data = e.data;
  if (data && data.type === 'rc-post-message-request') {
    if (data.path === '/sidebarApps/support-cases') {
      if (!crmAuthorized) {
        // Show authorization page
        responseMessage(data, {
          data: getAuthorizationPageJSON(),
        });
        return;
      }
      // Show main content when authorized
    }
    if (data.path === '/sidebarApps/support-cases/button-click') {
      if (data.body.button.id === 'crmAuthButton') {
        // Open authorization page in new tab
        window.open('https://crm-authorization-page', '_blank');
        responseMessage(data, {
          data: getRefreshAuthorizationJson(),
        });
      }
    }
  }
});

Post-authorization flow

After user authorization, the app needs to be refreshed to load the authenticated data. The widget will display a refresh message to guide users through this process.

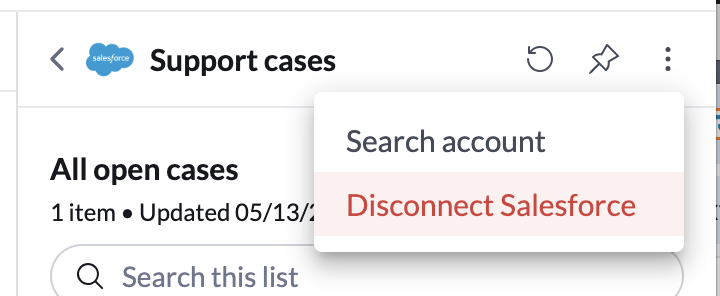

Action buttons

Actions are buttons that appear in the call widget's more actions menu:

action-buttons

window.addEventListener('message', function (e) {
  var data = e.data;
  if (data && data.type === 'rc-post-message-request') {
    if (data.path === '/sidebarApps/support-cases/button-click') {
      if (data.body.button.id === 'home') {
        // Navigate to home page
        responseMessage(data, {
          data: getCasesPageJSON(cases),
        });
      }
      if (data.body.button.id === 'unauthorize') {
        // Revoke authorization
        crmAuthorized = false;
        responseMessage(data, {
          data: getAuthorizationPageJSON(),
        });
      }
    }
  }
});

Example implementation

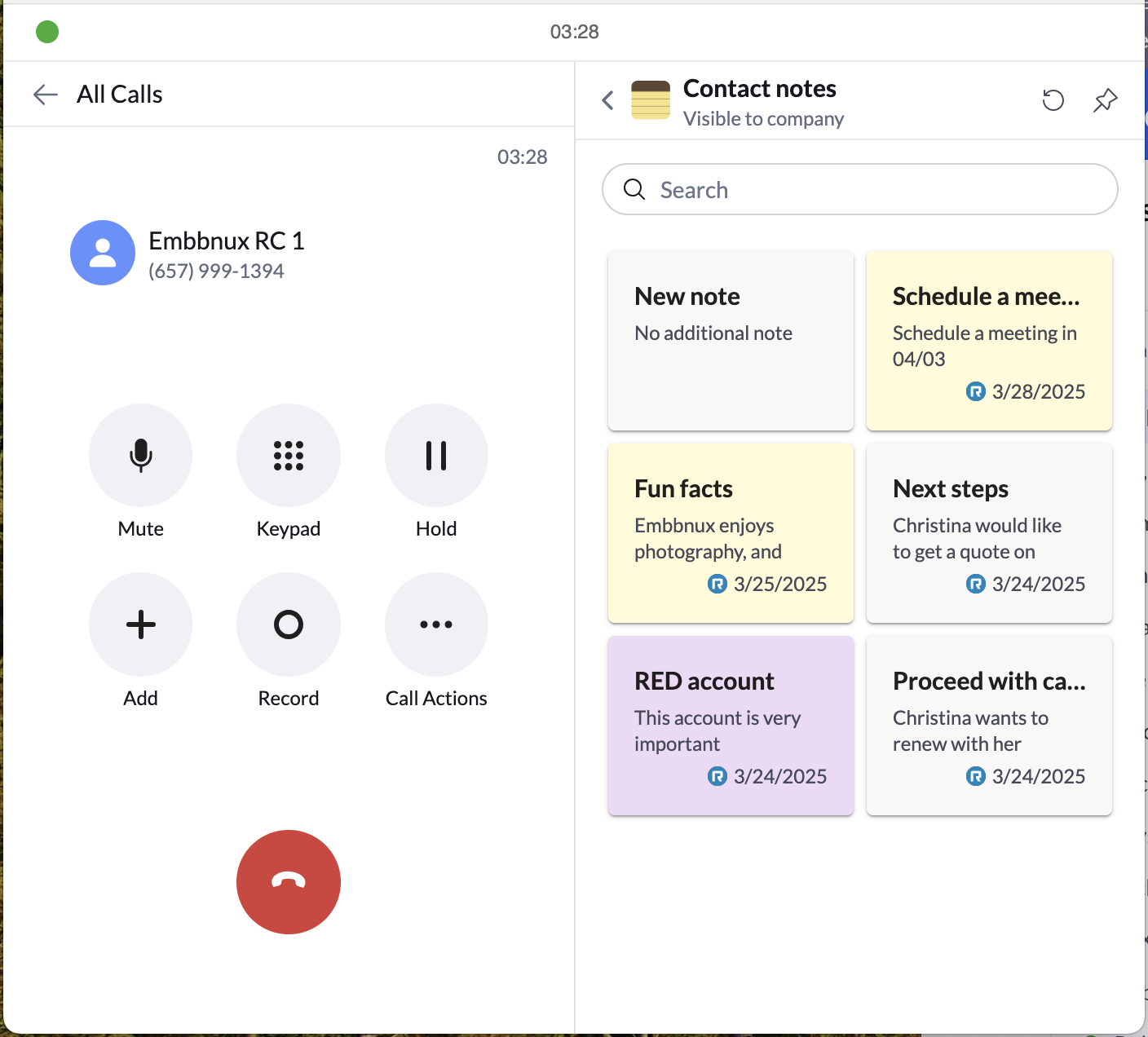

Contact notes widget

Here is an online demo of a contact notes widget:

Contact notes widget online demo

contact-notes-widget

Complete implementation

Get the full source code for the contact notes widget in the GitHub repository.
