App Connect Plugins

Connecting a CRM?

Use a connector when App Connect needs to authenticate to a CRM, match contacts, create contacts, or save CRM activity records. Use a plugin when you need to enrich or side-effect the logging workflow around an existing connector.

Plugins run during call, SMS, or fax logging. They can transform logging payloads before the connector receives them, or run background work that should not block CRM logging.

Template

Scaffold a plugin server with:

npx @app-connect/cli init my-plugin --template plugin

The template route wiring lives in packages/plugin-template/src/app.js. It shows the endpoints App Connect expects a plugin server to expose.

Registration Flow

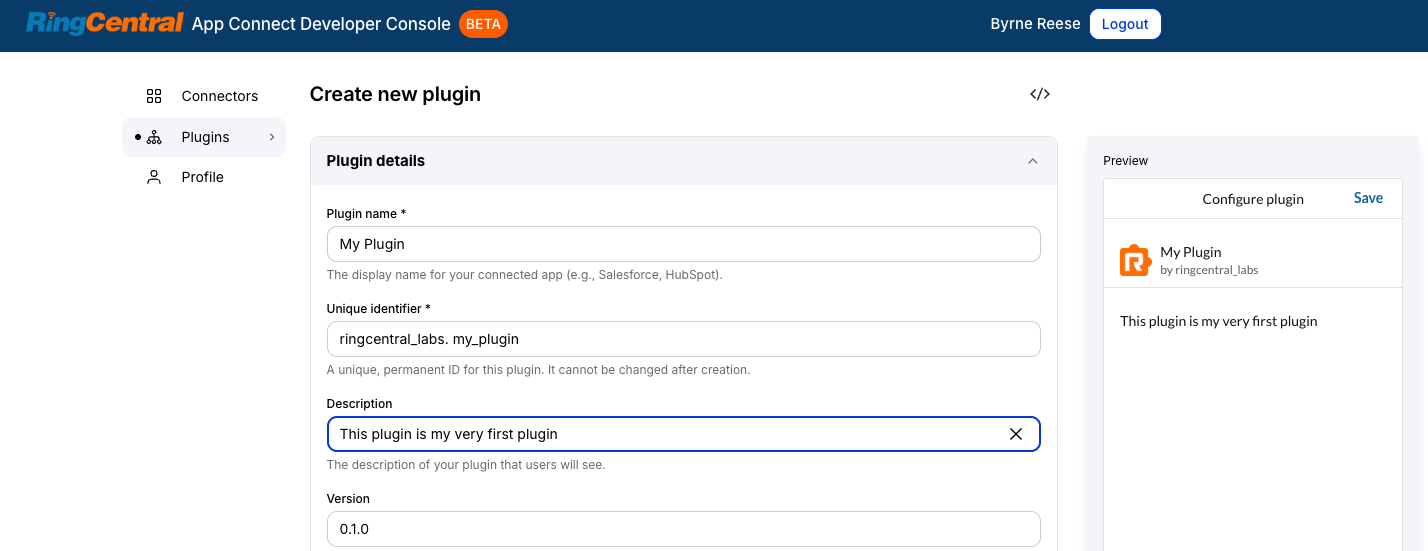

Register a plugin profile in the Developer Console.
Deploy the plugin server and configure its manifest URLs.
An App Connect admin installs the plugin for an account.
App Connect resolves the plugin manifest and calls userRegisterEndpointUrl.
The plugin server validates the RingCentral admin identity and returns { jwtToken }.
App Connect stores that plugin JWT in account data and uses it as a bearer token when invoking plugin endpoints.

Core resolves public, private, and shared plugin manifests through packages/core/handlers/plugin.js.

Manifest Fields

Current plugin runtime reads these fields from the plugin platform manifest:

Field	Purpose
`endpointUrl`	Main plugin invocation endpoint.
`userRegisterEndpointUrl`	Account registration endpoint. Must return `{ jwtToken }`.
`licenseStatusUrl`	Optional license endpoint. Called with `Authorization: Bearer <pluginJwtToken>`.
`supportedLogTypes`	Activity types that should invoke the plugin: `call`, `sms`, and/or `fax`.
`isAsync`	Marks the plugin as asynchronous. For call logs, App Connect dispatches after create or update succeeds and expects a callback.
`tokenSyncUrl`	Required for async plugins. App Connect calls this before invoking `endpointUrl` so the plugin can refresh its stored token.
`showAuthorizationButton`	Optional. Shows a user-facing Connect or Logout action on the plugin configuration page.
`authorizationUrl`	Optional. Endpoint that returns the third-party OAuth authorization URL as `{ "authUrl": "..." }`.
`authStateUrl`	Optional. Endpoint that returns the user's plugin auth state as `{ "successful": true }` or `{ "successful": false }`.
`logoutUrl`	Optional. Endpoint that disconnects the user's third-party account for this plugin.
Config fields	Stored in user settings under `plugin_<pluginId>` and passed to plugin calls as `config`.

Keep plugin secrets on the plugin server. The manifest should contain URLs and UI/config metadata, not secret values.

Required Plugin Endpoints

The template exposes these route shapes:

Endpoint	Method	Purpose
`/isAlive`	`GET`	Plugin health check.
`/admin/register`	`POST`	Validate `rcAccessToken` and `rcAccountId`, then return `{ jwtToken }`.
`/token/sync`	`POST`	Refresh or validate the plugin token before async dispatch.
`/plugin/sync`	`POST`	Run synchronous payload processing.
`/plugin/async`	`POST`	Start asynchronous processing.
`/license`	`GET`	Optional license status endpoint.
`/authUrl`	`GET`	Optional user OAuth URL endpoint.
`/checkAuth`	`GET`	Optional user OAuth state endpoint.
`/logout`	`POST`	Optional plugin logout endpoint.

Protected plugin endpoints should read the bearer token from Authorization and refresh it through x-refreshed-jwt-token when needed. The template helper is validateAndRefreshPluginToken; adjust its plugin-id check if your configured endpoint URL does not include a plugin id path parameter.

Optional User OAuth

Use plugin OAuth when the plugin needs a user to connect a third-party service in addition to the CRM connection that App Connect already manages.

Enable Support OAuth in the Developer Console plugin form, then configure:

authorizationUrl: a plugin endpoint that builds and returns the third-party authorization URL.
authStateUrl: a plugin endpoint that tells the client whether the user is already connected.
logoutUrl: a plugin endpoint that disconnects the user's third-party account.

Callback routing

The OAuth provider must redirect back to the App Connect extension redirect URI first, not directly to the plugin server. The client watches the OAuth popup and only detects completion when the popup lands on the extension redirect URI.

The plugin callback endpoint is still where the OAuth code should be exchanged for tokens, but it is reached by the client after the extension receives the browser redirect. Put that plugin callback URL in the OAuth state value as redirectTo.

OAuth provider
  -> App Connect extension redirect URI
  -> client calls plugin callback from state.redirectTo
  -> plugin exchanges code for tokens and stores them

An authorization URL returned by authorizationUrl should use the extension redirect URI as redirect_uri and include plugin routing data in state:

https://provider.example.com/oauth/authorize
  ?client_id=...
  &redirect_uri=https://ringcentral.github.io/ringcentral-embeddable/redirect.html
  &state={"from":"plugin","redirectTo":"https://plugin.example.com/oauth/callback"}

The state value is shown decoded for readability. URL-encode it when building the real authorization URL.

After the provider redirects to the extension redirect URI, App Connect calls the plugin callback endpoint:

GET https://plugin.example.com/oauth/callback
  ?hashedExtensionId=<hashed-extension-id>
  &callbackUri=<full-extension-callback-url>

The plugin callback endpoint should:

Parse callbackUri to read the provider's authorization code and state.
Validate the state value before exchanging the code.
Exchange the authorization code with the third-party OAuth provider.
Store access and refresh tokens on the plugin server, keyed to the user identity such as hashedExtensionId.
Return a successful response so the client can show the plugin as connected.

Do not register the plugin server callback URL as the OAuth app redirect URI unless that endpoint immediately redirects the browser back to the App Connect extension redirect URI. If the OAuth popup stays on the plugin server callback URL, the extension cannot detect that OAuth completed.

Synchronous Plugins

A synchronous plugin runs inline before the connector save. App Connect sends the current logging payload and waits for the plugin response.

Request body:

{
  "data": {
    "note": "Call notes",
    "additionalSubmission": {},
    "logInfo": {}
  },
  "config": {
    "ignoredLetters": {
      "value": "abc"
    }
  }
}

Return the same payload shape App Connect sent you. You may change fields such as note, additionalSubmission, or other connector inputs, but do not remove required data that the logging flow still needs.

Use synchronous plugins for deterministic, fast payload transformations.

Asynchronous Plugins

Async plugins are currently callback-enabled for call-log create and update flows. App Connect creates a one-week task cache, saves the task id, and sends that task id to the plugin. The task id embedded in the callback URL is the callback validation method. SMS and fax async plugins remain fire-and-forget and do not receive this callback contract yet.

Request body:

{
  "asyncTaskId": "task-id",
  "callbackUrl": "https://app-connect.example.com/plugin/async-callback/task-id",
  "data": {
    "note": "Call notes",
    "logInfo": {}
  },
  "config": {}
}

Return quickly:

{
  "accepted": true,
  "asyncTaskId": "task-id"
}

When background work finishes, post to callbackUrl:

{
  "successful": true,
  "message": "Async plugin completed",
  "note": "Text to append to Agent notes"
}

On success, App Connect appends note to the call log's Agent notes and removes the task cache. The callback does not re-run plugins.

For failed work:

{
  "successful": false,
  "message": "Upload failed",
  "note": ""
}

On failure, App Connect marks the task cache as failed and stores message in the cache data. Missing or expired tasks are rejected, and async task caches expire after one week.

Use asynchronous plugins for side effects or delayed enrichment. Use synchronous plugins when the plugin must change the payload before the connector saves the CRM activity.

License Checks

If a plugin requires entitlement checks, configure licenseStatusUrl. App Connect calls it with the account-level plugin JWT:

Authorization: Bearer <pluginJwtToken>

Return a JSON object that the client can interpret as the plugin license state. The template handler is packages/plugin-template/src/handlers/license.js.

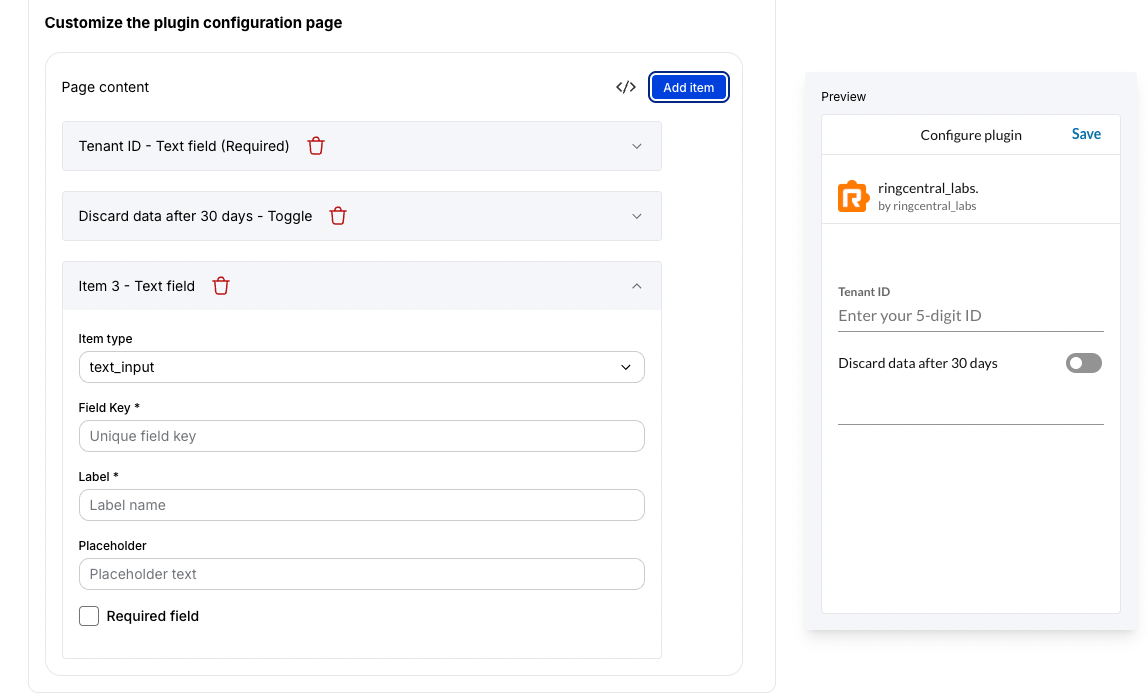

Custom Configuration

Plugin configuration is similar to connector custom settings. The saved config is passed to the plugin invocation as config; core reads it from user settings under:

plugin_<pluginId>.value.config

Validate config defaults on the plugin server. Older clients or admin-managed settings can omit optional config values.
